R-Series

R5

One operator, at a desk, inside the same geometry as a full facility.

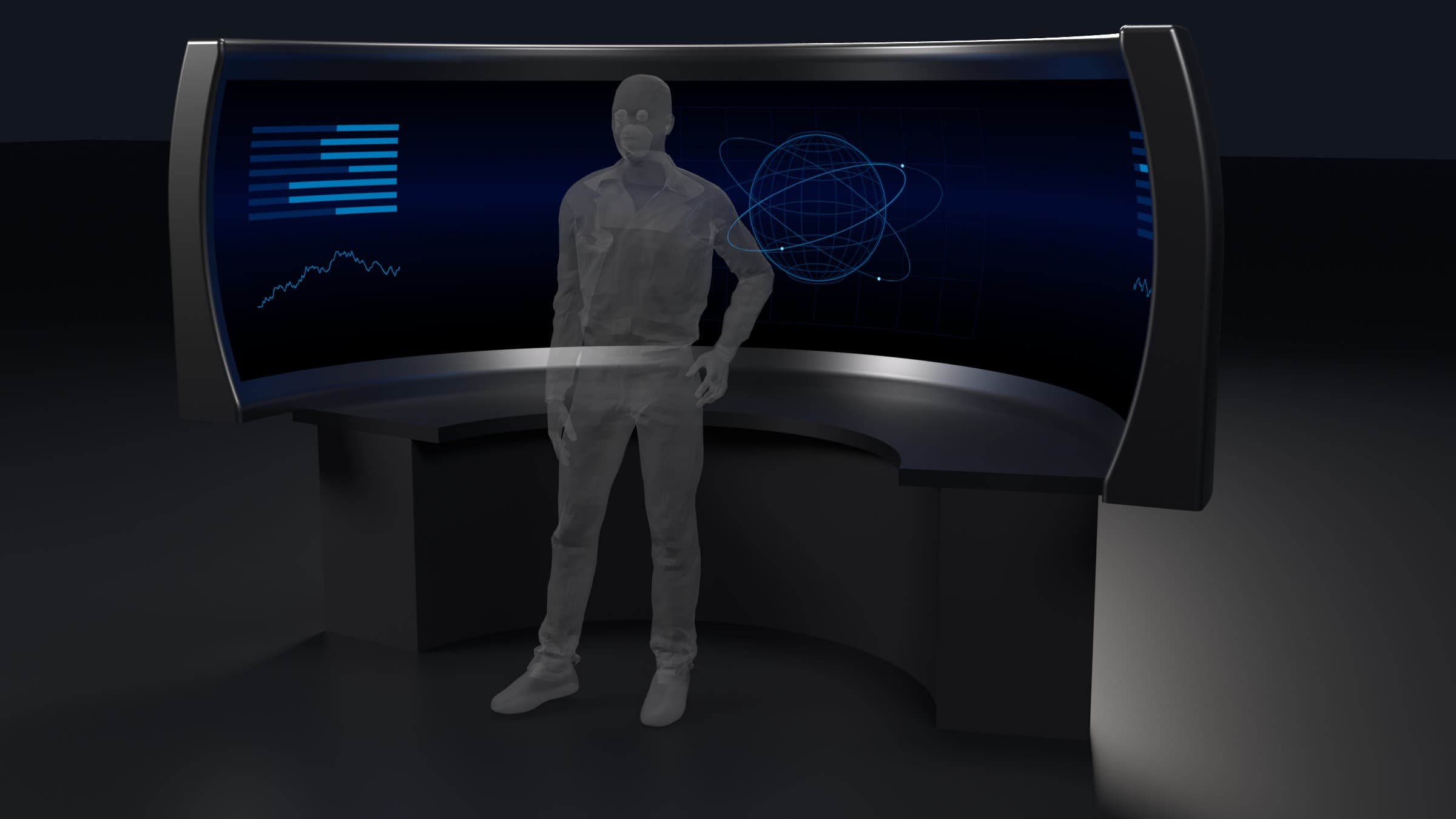

Studio render of the R5: a curved LED surface on its single-operator desk console, lit with abstract orbital graphics, a standing human figure at its centre for scale. The display plane is 9.84 ft across. — Rendered from the product geometry. Screen content is illustrative.

Geometry

Radius: 5 ft
Display plane: 9.84 ft / 3 m

What this scale serves

The R5 is the smallest part in the line and the one that most often answers a question nobody thought to ask: whether a single analyst at a workstation can have a surrounding environment at all, or whether that has always meant a room and a budget line.

It is a desk-mounted part. The operator stands or sits at normal working distance, and the surface wraps far enough to fill peripheral vision without the head turning. The extension takes it to a full circle where the task justifies it.

What it does not change is the geometry. It is the same true spherical surface as every larger family — angular relationships preserved at the design eyepoint, no seams, no facets, no blend zones. A program that proves a concept on an R5 is proving it on the thing it will scale to.

What varies per installation

Degrees of horizontal and vertical field, mounting, drive and power are configured per installation rather than fixed by the family, and the cut sheets carry the values. Ask us and we will send them.

Request the cut sheets Tell us about the room
