R-Series

R20

A facility — a watch floor, a large training bay, a room built for the purpose.

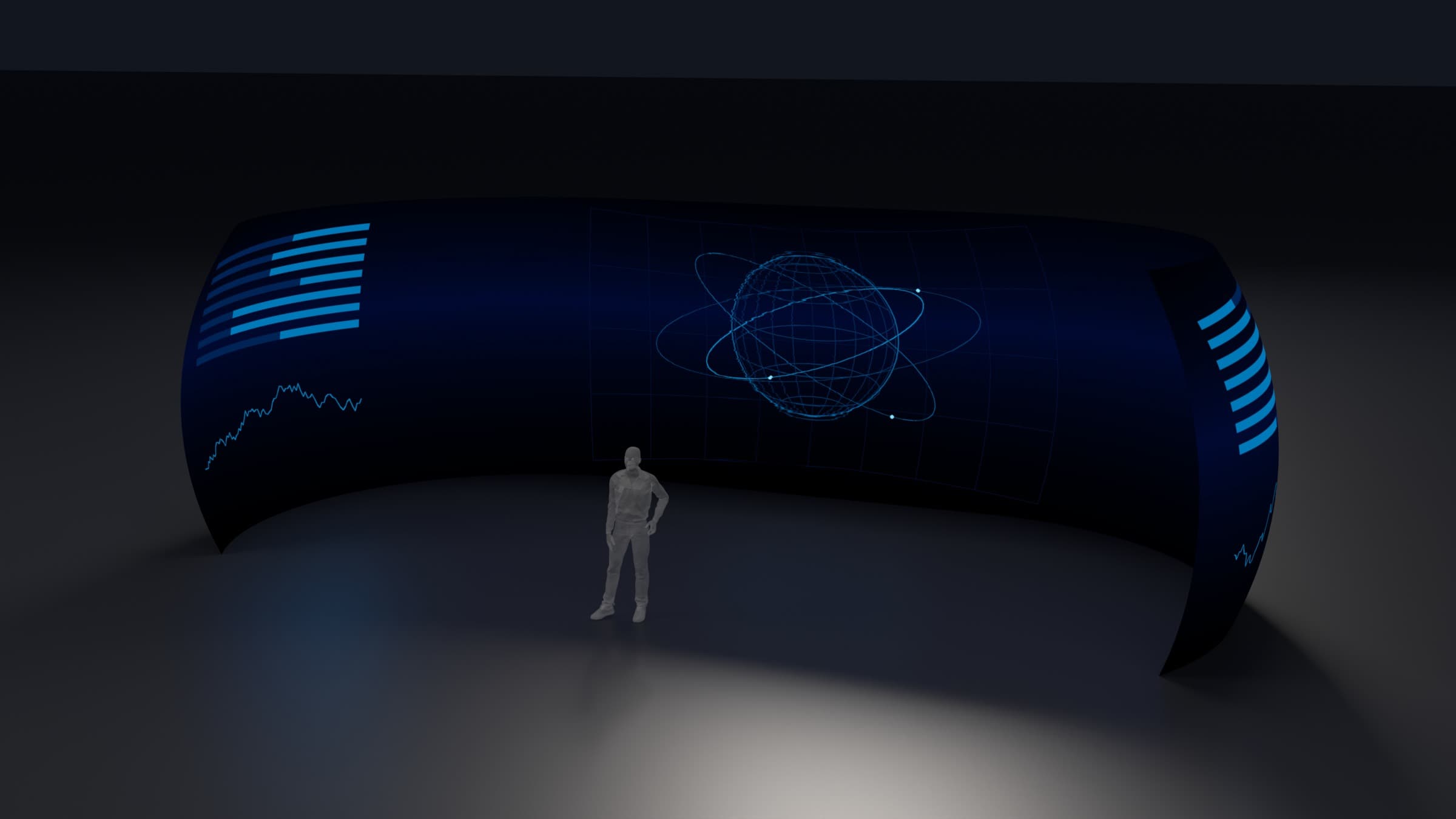

Studio render of the R20: a curved LED surface at facility scale, lit with abstract orbital graphics, a standing human figure at its centre for scale. The display plane is 40 ft across. — Rendered from the product geometry. Screen content is illustrative.

Geometry

Radius: 20 ft
Display plane: 40 ft / 12.2 m

What this scale serves

At 40 feet across, the display stops fitting into a building and starts being one of the reasons the building exists. This is facility scale, and the constraint that decides it is almost never the display — it is clear-span floor area.

That is worth raising in the first conversation rather than the third. A requirement written around a part this size disqualifies every existing building that cannot host one, which for facilities that already exist is most of them. Where the span is not there, a transitional fixture delivers the same surrounding environment along the walls that are.

Where the span is there, the R20 gives a large group a single continuous world with no interruption anywhere on it, at a size where the surface is well past the edge of peripheral vision from every seat.

What varies per installation

Degrees of horizontal and vertical field, mounting, drive and power are configured per installation rather than fixed by the family, and the cut sheets carry the values. Ask us and we will send them.

Request the cut sheets Tell us about the room
